Single-Frequency High-Power Nanosecond Laser: PULSELAS™-A-1064-10W-SF Print

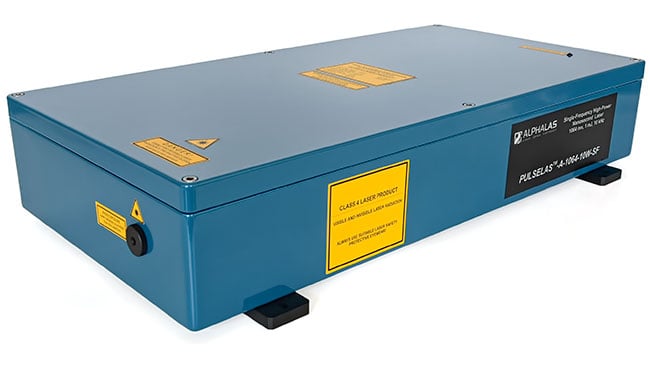

Single-Frequency High-Power Nanosecond Laser: PULSELAS™-A-1064-10W-SF

pdf Single-Frequency High-Power Nanosecond Laser: PULSELAS™-A-1064-10W-SF [Detailed Datasheet, PDF]

The PULSELAS™-A-1064-10W-SF is a powerful, diode-pumped, single-frequency, nanosecond laser system which delivers 1 mJ pulse energy at 10 kHz pulse repetition rate. It operates at the fundamental wavelength of 1064 nm. Frequency conversions to 532 nm, 355 nm and 266 nm wavelengths are optional. The distinctive features of this laser like near-transform-limited spectral width, simultaneously high average and peak powers, diffraction-limited output beam, etc. make it an ideal choice for numerous scientific and industrial applications, including  optical meteorology, interferometry, high-resolution laser spectroscopy, fiber communications, single pulse holography and many others. The Ethernet connection allows easy access and control of the laser system even in remote, hard-to-reach or hazardous areas.



 Features  Applications
  • Single frequency (single longitudinal mode)
  • High-energy nanosecond pulses
  • < 40 MHz spectral width
  • Nearly bandwidth transform-limited pulses
  • 1 mJ pulse energy at 1064 nm wavelength
  • 10 W average power at 1064 nm wavelength
  • 80 kW peak power at 1064 nm wavelength
  • Nearly diffraction-limited beam quality
  • Optionally available 532, 355 and 266 nm
  • Remote control via Ethernet
  • High-Resolution Laser Spectroscopy
  • Nonlinear Frequency Conversion
  • Fiber Bragg Grating Fabrication
  • Optical Meteorology
  • Remote Sensing
  • Interferometry
  • Lithography
  • Holography
